ABB 1SVR011705R2100 CC-E/STD Signal Converter Univers V/I / V/I 110-240VAC Module

ABB 1SVR011705R2100 CC-E/STD Signal converter, univers. V/I / V/I 110-240VAC Module

1.Overview of the ABB 1SVR011705R2100 CC-E/STD

The ABB 1SVR011705R2100 (CC-E/STD) is a universal analog signal converter. Powered by a wide 110-240 VAC voltage range, it provides bidirectional isolated voltage-to-current and current-to-voltage conversion. Its input/output ranges are selectable from 0-5 V, 0-10 V, 0-20 mA, or 4-20 mA. With a conversion accuracy of up to ±0.5%, it provides a reliable, zero-drift signal interface between field sensors and PLCs and DCS systems.

2.Core Features:

• Three-terminal Isolation: The input, output, and power supply are electrically isolated from each other, effectively suppressing common-mode interference and ground loops.
• One-Touch Configuration: Side DIP switches quickly set the input/output range, and front-panel potentiometers fine-tune the gain and zero point.
• Status Indicator: A green LED displays the power supply status in real time, making troubleshooting easy.
• Wide-Voltage Power Supply: 110-240 VAC auto-sensing allows direct connection to the on-site AC control power supply without the need for additional voltage conversion.

• Accuracy: ±0.5% (full scale)
• Channels: 1 input → 1 output
• Input/output ranges: 0-5 V, 0-10 V, 0-20 mA, 4-20 mA selectable
• Isolation voltage: ≥ 1 kV (input, output, power)
• Power supply: 110-240 VAC ±10%, 50/60 Hz
• Power consumption: ≤ 3 VA
• Response time: ≤ 20 ms
• Operating temperature: 0-60°C
• Enclosure: IP20
• Mounting: DIN rail, TS-35/7.5 or TS-35/15
• Dimensions: W 22.5 mm × H 75 mm × D 102 mm
• Weight: Approximately 90 g

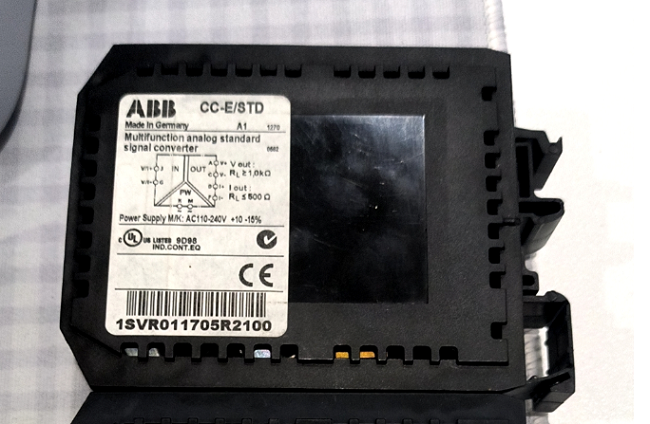

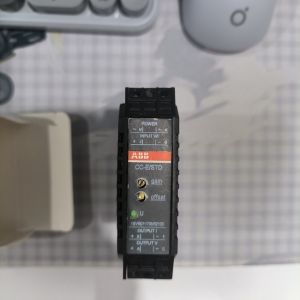

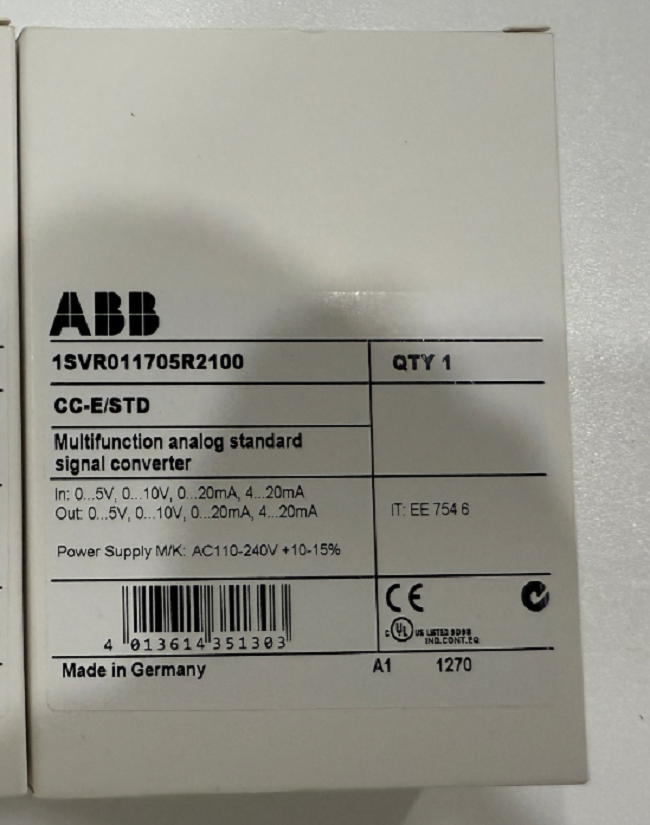

3.Product details pictures
